Mobile
Quench Systems
HOT
OIL, AND WATER QUENCHING
For Tool Room,
Vocational and Metals Tech Labs
QT-350A
and QT-200A

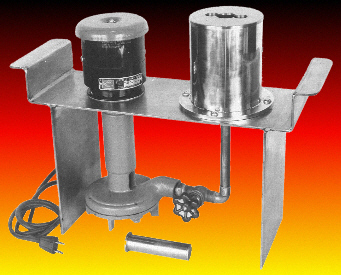

Model JQF-1 Jominy
Quench Fixture,
portable model, with stainless steel bracket; Aluminum
quench chamber, nozzle, locator and piping; with motorized
pump
 |
Heat treating involves three distinct steps
- high temperature heating or austenizing, rapid cooling or
quenching to harden, and tempering for final hardness and
physical properties. Each step is significant in its effect on
final results.
To fill the need of quenching equipment for
the general shop, MIFCO has developed industrial type units
for tool room, vocational education and metals technology.
They have powerful agitator circulating pumps, separate quench
chamber with catch basket, and electric heaters and
temperature controller as optional equipment.
The shop rule for calculating quench-tank
capacity is one gallon of quench media, for each pound of
steel quenched at 1500°F per hour. The sixty gallon capacity
of the powered units provides ample volume for the average
shop.
Standard quench oils give best results when
heated to 120° F to 140° F. The oil quench tanks are immersion
electrode heated and have automatic temperature control.
Special high temperature oil can also be used at 300° to 400°
for hot oil quenching. Water quench tanks are usually
maintained at 60° to 70° by addition of tap water and are
built with tap inlet and overflow.
A Jominy Hardenability Test End Quench
Fixture is available for vocational and metallurgical
laboratory work. It is a portable, integral unit and is used
with the QT-200-A system or comparable size tank. The support
stand, end quench chamber, flow nozzle and support ring are
rust resistant stainless steel or brass. The pump is 110 volt,
60 cycle with flow adjusting valve and cord.

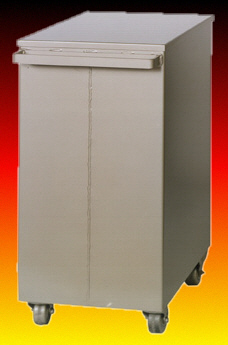

Model QT-20 Mobile Quench Tank
35
gallon capacity, 10 gauge steel, 16 in. x 18 in. x 28 in.
high, on 3 in. casters,
single compartment with catch basket and cover.

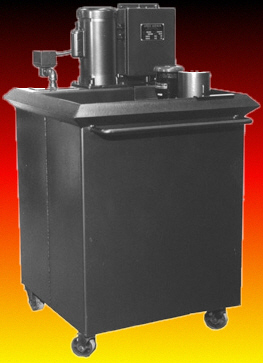

Model
QT-200-A Mobile Water Quench System
Sixty gallon capacity. Shell 12 gauge steel, mounted on 3 in.
casters. With 1/2 HP, propeller type agitator and control
panel. Overall size 29 in. square x 44 in. high. Supply
Voltage and Phase Options: 115/230V / 1PH, or 230/460V / 3PH.
Approximate weight 360 lbs.

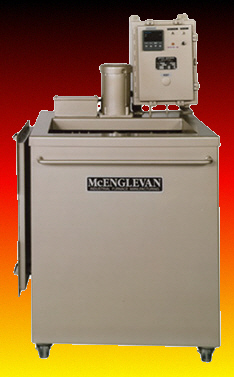

Model QT-350A
Mobile Oil Quench System
Sixty
gallon capacity. Inner tank, 10 gauge steel, 24 in. square x
30 in. deep, with 16 in. x 24 in. x 30 in. deep quench chamber
and catch basket. Tank insulated with 2 in. insulation. Outer
shell 12 gauge reinforced steel, mounted on 3 in. casters.
With 4800 watt heater, heavy duty contactor and indicating /
controlling temperature instruments, range 0-400 F. With 1/2
HP, 110 volt, propeller type agitator with overload protection
and control panel. Overall size: 29 in. square x 44 in. high.
Approximate weight 550 lbs. Supply Voltage and Phase Options:
230V / 1PH, or 230/460V / 3PH. |
