FLAT
HEARTH SLOT FORGES
Three Sizes to
Choose From
Models: F-512,
F-526, F-826
Chamber sizes:
F-512 - 5" x 12", F-526 - 5" x 26", F-826 - 8" x 26"
All slots are
7" deep.

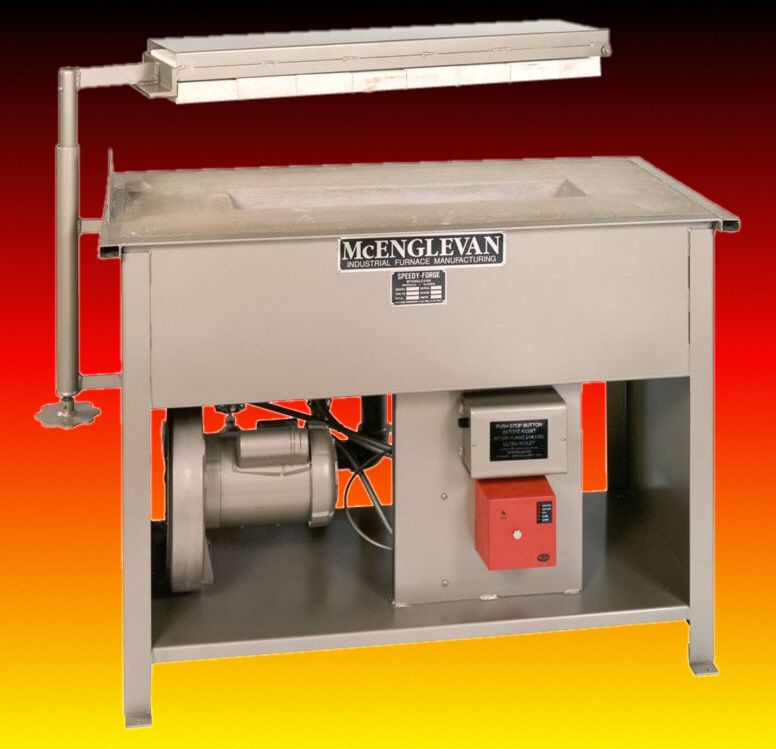

A modern designed
forge, offered in 3 sizes to meet the requirements of the
General Shop, Vocational and Agricultural School Shops, or,
Blacksmith, Industrial, and Farm Maintenance Shops. The Flat
Hearth Slot Forge is particularly adapted for tool dressing
and sharpening, general forging, bending, and welding
operations. Work is always visible to the operator, thus
preventing burning and wasting of materials.
The forge is
constructed of heavy gauge steel, structurally reinforced and
electric welded. The reflector baffle is made of steel angle
and bar to resist sagging and bending. The reflector elevating
screw provides easy, positive adjustment. Like all Speedy
Forge Furnaces, the complete firebox and hearth area is lined
with High Alumina Fire Brick to give extra service life. High
temperature castable insulation between the fire brick and the
furnace shell provides faster heating, greater fuel
efficiency, and simplifies the relining of the furnace. The
reflector baffle lining is composed of standard 9 in. and
13 in. insulating fire bricks. An adjustable work support rack
is also standard equipment.
The Gas/Air Mixer
operates efficiently with either natural or propane fuel. The
standard mixer is a two valve, manual control type which
permits the operator to adjust the flame to any
characteristics desired. Combustion Safeguard Systems with
spark ignition and continual flame monitoring are standard
equipment on all forging furnaces.
|
FLAT
HEARTH SLOT FORGES SPECIFICATIONS
|
|
MODEL |
FIREBOX OPENING |
HEARTH SIZE
Width X length |
REFLECTOR BAFFLE
Width X length |
WORKING HEIGHT |
FLOOR SPACE |
BLOWER RATING |
MOTOR RATING
110V |
GAS INPUT BTU/HR |
GAS SERVICE LINE |
GAS CONNECT |
APPROX. SHIPPING WEIGHT |
|
F-512 |
5"X7"X13' |
18"X22" |
9"X22" |
32" |
28"X38" |
60 CFM |
1/2 HP 3450 RPM |
200,000 |
1 1/4 |
3/4" |
390 lbs |
|
F-526 |
5"X7"X26" |
18"X42" |
9"X36" |
32" |
28"X50" |
110 CFM |
1/2 HP 3450 RPM |
450,000 |
1 1/2 |
1" |
850 lbs |
|
F-826 |
8"X7"X26" |
18"X42" |
13"X36" |
32" |
28"X50" |
110 CFM |
1/2 HP 3450 RPM |
450,000 |
1 1/2 |
1" |
850 lbs |
|
4 to 6
oz. gas pressure or 6" to 9" WC |
|
